Port Electrical Safety Monitoring
Using ESA Multi-Parameter Smart Meters, ESB Three-Phase Imbalance Monitors, EST Multi-Channel Temperature Controllers and ESX and other products, providing 7×24 hours electrical safety online monitoring for port cold ironing systems, cranes, reefer containers, distribution rooms and other scenarios, real-time sensing of leakage, temperature and current abnormalities, ensuring port safety stable operation under complex marine environment.
01 · BACKGROUND
Customer Background
Enterprise Type
A Port Operator Enterprise, responsible for large container port operation management and handling equipment maintenance, is a national key transportation infrastructure facilities operator.
Enterprise Scale: subject to site survey
Port Scale
Port contains container terminals, bulk cargo terminals, cold ironing systems, reefer container yards and other multi facilities, distribution rooms, substations, cranes are widely distributed, power load is large and types are complex.
Berth Count/Throughput: Hazard warning
Industry Position
National Critical Transportation Infrastructure, need strict compliance with JTS 165 "General Design Code to Sea Port" and GB 50057 "Design Code to Protection of Buildings Against Lightning" standards, very high safe operation requirements.
Compliance Standard: JTS 165 / GB 50057
02 · CHALLENGES
Business Challenges
Marine Environment Corrosion Causes High Electrical Hazard Incidence
Port long period in high salt spray, high humidity marine environment, cold ironing systems, crane electrical cabinets, reefer container distribution line insulation easily ages, leakage and electrical fire hazards are significantly higher than onshore scenarios, traditional manual inspection is hard to detect in time.
Handling equipment power is large, temperature monitoring is hard
Bridge cranes, gantry cranes, conveyors and other large power handling equipment operate under long-period high load, cable joints and distribution box temperatures easily rise abnormally high, lack of continuous online temperature monitoring means, overheat hazards are hard to warn early.
Cold ironing system safety monitoring requirements are high
Berthed ships use cold ironing within range, voltage fluctuation, leakage, overload and other risks are prominent. Need for cold ironing sockets, distribution cabinets, and transformers real-time electrical safety monitoring, ensure crew and port personnel safety.
Reefer container group monitoring points are dense
Reefer container yard distribution circuits are dense, single box power is large. Manual inspection is time-consuming, coverage is limited, and some regions affected by operation control are hard to inspect at high frequency, electrical hazards are hard to detect in time.
03 · SOLUTION
Solution
System Architecture Diagram
Note: This is a technical illustration. Architecture: sensing layer → edge & network layer (ESX Intelligent Edge Computing Gateway) → platform layer (FEXCloud IoT Cloud Platform).
Deployed Product List
| Product Name | Model | Quantity | Function |
|---|---|---|---|
| ESA Multi-Parameter Smart Meter | ESA | Configured per point | Deployed at port main distribution cabinets and cold ironing distribution cabinets, real-time monitoring of residual current, cable temperature, overload and other electrical safety parameters, abnormality instant local alarm |
| ESB Three-Phase Imbalance Monitor | ESB | Configured per point | Deployed at crane control cabinets and reefer container distribution boxes, acquire leakage, temperature, current, voltage and other multiple element data |
| EST Multi-Channel Temperature Controller | EST | Configured per point | Attached to crane cable joints, cold ironing sockets, breaker contacts and other key hot spots, achieve high precision continuous temperature monitoring |
| ESX Intelligent Edge Computing Gateway | ESX | Configured per point | Deployed at bulk cargo handling equipment control boxes, comprehensive monitoring of conveyor, loading bridge and other circuit electrical status |
| FEXLINK Cloud Platform | Cloud 3.0 | 1 Set | Data aggregation, visualization display, alarm push, O&M work order, compliance report auto generation |
Note: Product quantities follow the point-based configuration principle; final quantities are subject to site survey and the implementation plan.
Network Topology
Sensing Layer: ESA Multi-Parameter Smart Meters are deployed at port main distribution cabinets and cold ironing distribution cabinets, ESB Three-Phase Imbalance Monitors are deployed at crane control cabinets and reefer container distribution boxes, EST temperature sensors are attached to crane cable joints/cold ironing sockets/breaker contacts and other key hot spots, ESX Intelligent Edge Computing Gateways are deployed at bulk cargo handling equipment control boxes.
Network Layer: Each sensing terminal connects via RS485 bus (Modbus-RTU protocol) to nearby ESX Intelligent Edge Computing Gateway, ESX gateway uploads via optical fiber private network/4G cellular network uplink to port operator company grid network, key nodes support dual-link redundant backup to ensure data transmission reliability.
Platform Layer: Data aggregates to FEXLINK Cloud Platform (private deployment), providing web & mobile visualization dashboard, real-time alarms, history trend analysis, O&M work order dispatch, compliance report auto generation, multi-role permission management and other functions.
Integration Layer: Cloud platform through standard REST API / Modbus TCP protocol, and port existing TOS (Terminal Operating System), SCADA, equipment management system integration, achieve data sharing and linked alarms, unified into O&M work order process.
04 · IMPLEMENTATION
Implementation Process
Site Survey & Solution Design
Engineers visit port sites to survey, survey distribution system structure, cold ironing system, crane and reefer container distribution, outputting point list and system deployment plan.
Timeline: per project schedule
Equipment Installation & Wiring
ESA/ESB/ESX installed at each distribution cabinet and control box, EST temperature sensors attached to key hot spots, ESX intelligent edge computing gateway centralized deployment, complete RS485 bus wiring and power connection.
Timeline: per project schedule
System Commissioning & Platform Integration
Configure ESX gateway acquiring parameters and upload transmission cycle, complete FEXLINK cloud platform account setup, point binding, alarm threshold setting, and existing TOS/SCADA system integration commissioning.
Timeline: per project schedule
Trial Operation & Personnel Training
System trial operation and calibration data accuracy, to O&M personnel on platform operation, alarm handling, work order flow, report export and other training, complete project acceptance and delivery.
Timeline: per project schedule
05 · RESULTS
Application Effects
7×24h
All-Weather Online Monitoring
subject to site survey
Monitoring Point Cover Count
Online inspection
Reduced Manual Inspection Hours
Hazard warning
Early Warning Hazard Count
subject to site survey
Emergency Fault Response Time Reduction
Auto
Compliance Report Auto-Generation Rate
Application Value
"subject to site survey Customer testimonial for this case to be added after customer confirmation. Testimonial content will cover system deployment before and after O&M efficiency month-over-month, electrical hazard early detection cases, cold ironing safety monitoring improvement and other dimensions."
— Qualitative statement based on solution design objectives
06 · RELATED PRODUCTS
Related Product Recommendations
Electrical Safety
ESA Multi-Parameter Smart Meter
Residual Current · Cable Temperature · Overload Monitoring
View Product
Electrical Safety
ESB Three-Phase Imbalance Monitor
Multi-Element Acquisition · High Precision · End Cover
View Product
Electrical Safety

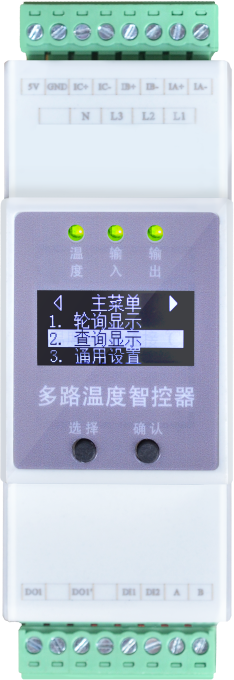

EST Multi-Channel Temperature Controller
